Automatic Case Packer Machine: In today’s fast-moving consumer goods environment, efficiency, consistency, and scalability are not optional — they’re essential. As businesses expand, demand fluctuates, and labor costs rise, manual processes quickly become bottlenecks. That’s where automation in packaging comes in — and at the heart of that automaton lies the automatic case packer machine.

What Is an Automatic Case Packer Machine?

A case packer (or case-packing machine) is a piece of packaging equipment that automatically arranges, loads, and seals products into cartons, trays, or cases. Essentially, it automates the process of moving items from a production line (pre-packaged products) into secondary packaging (cases) ready for shipping or palletizing.

When it’s “automatic,” all steps in the case packing cycle—case forming, product loading (from top, bottom, side, or wrap-around), and case sealing—are handled by machinery, eliminating or minimizing human intervention.

Automatic case packer machine have evolved from basic mechanical systems to sophisticated robotic and servo-driven machines with vision systems, smart sensors, and modular architectures.

Key Functional Steps in an Automatic Case Packer Machine

A typical automatic case packer machine workflow consists of:

Case erection / forming: Flat carton blanks are erected into open cases.
Product orientation & collation: Items are arranged or grouped in the correct orientation and pattern required for the case format.
Loading / insertion: The arranged products are placed into the open case (top load, side load, bottom load, or wrap-around)
Case closure / sealing: The filled case is sealed (glue, hot melt, tape, or fold and lock).
Inspection / verification: Sensors or vision systems check for proper count, orientation, misfeeds, etc.

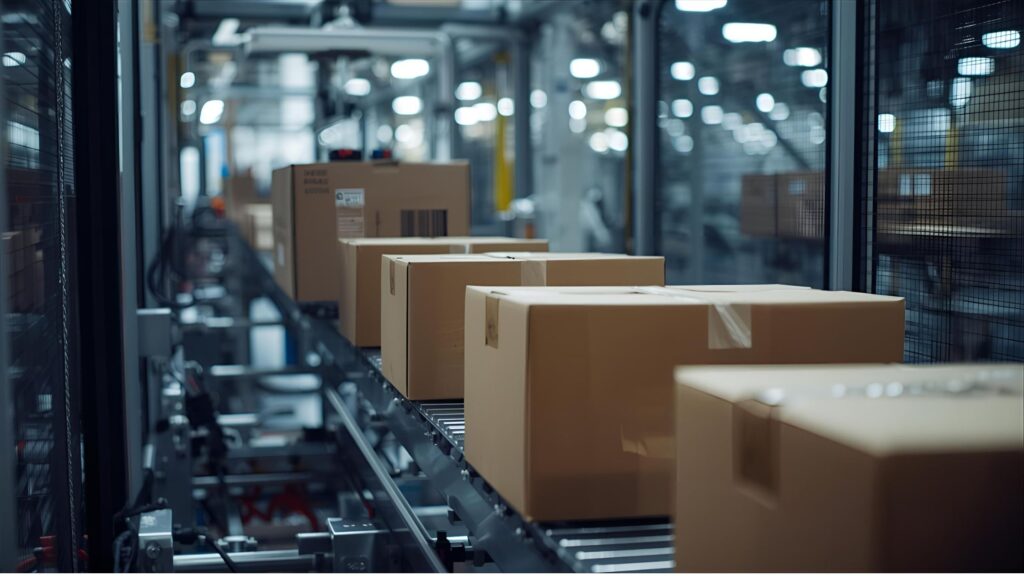

Case discharge / onward conveying: The sealed case is delivered to the next stage (e.g. palletizing, labeling).

Advanced automatic case packer machines may include features such as error detection, changeover automation, self-diagnostics, and data logging (for traceability and OEE analysis).

Why Adopt an Automatic Case Packer Machine?

Switching from manual or semi-automatic packing to a automatic case packer machine is a strategic investment. Here are the compelling reasons:

1. Efficiency & Throughput

automatic case packer machines can pack at speeds much higher than human labor, running 24/7 with minimal downtime (only interruptions for maintenance). This removes the bottleneck at the end-of-line and ensures your production doesn’t stall simply because cases aren’t being loaded fast enough.

2. Consistency & Accuracy

Manual packing leads to variability — miscounts, misalignment, crushed goods, or erratic placement. Automatic case packer machine deliver consistent, repeatable results, reducing damage, returns, and customer complaints.

3. Cost Savings in Labor & Wastage

Yes, the upfront investment is significant, but over time, automated packing reduces labor costs, especially in regions where wages are rising or skilled labor is scarce. Also, precise handling cuts down on packaging waste, damaged product, or mis-packed cartons.

4. Safety & Ergonomics

Repetitive tasks like lifting, twisting, and loading heavy cartons expose workers to injury risk. Automating this reduces manual handling and enhances workplace safety.

5. Flexibility & Scalability

Modern automatic case packer machines are modular and configurable. They can adapt to multiple SKUs, case formats, or pack patterns with minimal changeover time. This means when your product line changes or expands, your machine doesn’t become obsolete.

6. Better Material Utilization & Sustainability

Precision control over case blank handling and packing patterns leads to less corrugate waste. Some systems utilize wrap-around cases or integrate minimal packaging approaches. Also, reduction in product damage contributes to sustainability.

7. Faster Time-To-Market & Competitive Edge

If your packaging line is a bottleneck, it delays deliveries, ties up inventory, and limits agility. With efficient case packing, you can move faster to serve seasonal demands, promotions, or new SKU launches.

In sum, the adoption of an automatic case packer machine becomes less a matter of “nice to have” and more a strategic imperative for growing manufacturers.

Types, Configurations & Technical Variants of Automatic Case Packer Machine

Understanding the types and variants of automatic case packer machines helps you align machine choice with your product and packaging requirements.

1. Based on Loading Direction

Top-Load Case Packers: Products are dropped from above into an open case. Efficient for vertical stacking of bottles, pouches, jars.
Side / End-Load (Horizontal) Case Packers: Products are pushed or guided into the case from the side or end. Good for items that travel horizontally or need continuous motion.
Bottom-Load Case Packers: The case is lifted around the product from beneath. Useful for fragile or heavy items that shouldn’t be dropped from above.
Wrap-Around / Wrap-Around Case Packers: Instead of loading into a preformed case, the machine forms a wrap-around carton around the products. It saves on corrugate and can offer more structural strength.

2. Based on Motion Type & Speed

Intermittent / Periodic motion packers: The machine pauses between operations (erecting, loading, sealing). Good for moderate speeds and flexibility.
Continuous motion packers: The process flows without stops, contributing to high throughput and efficient synchronization. These are ideal when packing is continuous and speed is critical.
Robotic / Gantry / Pick-and-Place packers: Using robotic arms or gantry systems, these are extremely flexible — good for irregular shapes, multiple SKUs, or complex pack patterns.

3. Based on Combination / Hybrid Features

Many modern automatic case packer machines offer hybrid configurations or combination machines — e.g. a machine that can both case pack and wrap, or one that can handle multiple packaging formats (tray, case, sleeve).

4. Key Technical Modularity & Options

Case size adjustability / quick changeover
Multi-format handling (SKUs, case styles)
Sensors, vision systems, error detection modules
Servo motors, pneumatic or vacuum pick systems
Data logging, IoT connectivity, diagnostics
Cleaning / washdown capability (for food / pharma)
Safety guards, interlocks, and operator ergonomics

The optimal variant depends on your product type, speed requirements, floor space, and future growth plans.

How to Choose the Right Automatic Case Packer Machine

Selecting the appropriate automatic case packer machine is a critical decision. A mismatch can lead to underperformance, downtime, or inability to scale. Here are the factors you must consider:

1. Throughput & Speed Requirements

First, determine how many units or cases per minute/hour you need to match your production line. Don’t just consider current demand—factor in growth or seasonal peaks. Choose a machine whose cycle time comfortably supports this target without being perpetually maxed out (allow headroom).

2. Product Characteristics & Handling Constraints

Size, shape, weight, fragility
Will orientation or rotation be required?
Is grouping or collation needed?
Are there particular handling constraints (e.g. delicate glass bottles, soft pouches)?
Upstream constraints (product spacing, pitch)

These demand careful evaluation because the case packer must gently and reliably handle your product. Some products require vertical loading vs horizontal pick-and-place.

3. SKU Flexibility & Changeovers

If you run multiple SKUs or change packaging frequently, opt for modular designs or robotic systems with quick-change tooling. The fewer the downtime during changeover, the better.

4. Case / Carton Formats & Materials

What style of case (RSC, wrap-around, knock-down, trays)?
What are the size ranges (min & max dimensions)?
Material types, thickness, rigidity
Closure method (glue, tape, fold-lock)

Your case packer must support the formats and closure types you intend to use.

5. Integration with Existing Lines

Can the new case packer integrate with your upstream and downstream machines (conveyors, labelers, palletizers)?
What communications / control protocols are supported (PLC, SCADA, network interfaces)?
Footprint and layout adaptability

Seamless integration is key to avoid costly reengineering later.

6. Maintenance, Support & Reliability

Availability of spare parts
Manufacturer support, service agreements
Ease of diagnostics, accessibility, training
Mean time between service / downtime

A reliable machine with good support avoids costly downtime in the long run.

7. Budget & ROI Assessment

Factor in not just the capital cost of the machine but:

Installation and commissioning
Training
Spare parts inventory
Downtime cost during deployment
Operational cost (energy, consumables)

Balance these against labor savings, improved throughput, reduced damage, and flexibility.

8. Safety, Hygiene & Compliance

In industries like food, pharma, or consumer goods, sanitation and safety compliance matter:

Washdown capability
CIP (clean-in-place) or easy cleaning
Food-grade materials, stainless steel
Safety guarding and interlocks

Real-World Benefits & ROI Stories of Automatic Case Packer Machine

Let’s look deeper into how businesses benefit after adoption, and what the return on investment can look like.

1. Case Study: Beverage / Bottling Industry

In the beverage segment — where bottles and cans are especially prone to damage — case packers ensure secure, consistent loading into cases. The reduction in breakages and misalignment often pays back the machine cost quickly, especially when volumes are high.

2. Case Study: FMCG / Packaged Foods

A snack food company replacing a mostly manual packaging line with an automatic case packer saw throughput double during peak hours and cut product damage losses drastically. The machine’s ability to handle multiple flavors and pack sizes with quick changeovers enabled them to respond to demand surges. (Hypothetical, but mirroring industry patterns.)

3. ROI Metrics & Payback Period

Typical payback for a well-implemented system of this kind can lie between 1 to 3 years, depending on volume, labor costs, and changeover frequency. The components of return include:

Benefit	Contribution
Labor cost reduction	Fewer staff needed per shift at end-of-line
Increased throughput	More cases processed per shift
Lower rework/damage losses	Fewer mispacked or broken items
Reduced packaging waste	More precise handling
Better OEE & uptime	Less unplanned downtime

Moreover, intangible benefits include scalability, improved brand reputation, and capacity to take on more contracts.

Common Pitfalls & How to Avoid Them In Automatic Case Packer Machine

No technology is risk-free. Here are common pitfalls and mitigation strategies:

1. Underestimating Changeover Needs

If your products change frequently and your machine isn’t optimized for fast changeovers, you’ll incur significant downtime. Use modular tooling or robotic systems to reduce this risk.

2. Poor Layout / Footprint Planning

Installing a machine that doesn’t fit your floor plan or that conflicts with other line flows can be disastrous. Use detailed layouts and simulations beforehand.

3. Insufficient Integration Planning

If upstream conveyors or discharge mechanisms aren’t compatible, you may end up needing expensive adapters. Also, ensure signal and control compatibility.

4. Neglecting Safety & Maintenance Access

Machines jam, parts wear. If safety doors, maintenance gates, or spare part access are poorly designed, downtime and accidents loom bigger.

5. Overconfidence in “Fully Automated” at All Times

Even the best machines require periodic maintenance, recalibration, and sometimes human oversight. Don’t expect zero intervention.

6. Poor Change Management & Training

Operators must be trained to use, maintain, and troubleshoot. Resistance to change can also slow adoption.

Implementation Strategy & Best Practices In Automatic Case Packer Machine

Here’s a practical roadmap to migrate to an automatic case packing system successfully:

1. Pilot / Proof of Concept

Test with a representative SKU or packaging run to validate machine behavior, changeovers, integration, and throughput.

2. Layout Simulation & Modeling

Create virtual or physical mockups of line flow, safety zones, guard rails, and material handling paths. Use digital twin modeling if possible.

3. Phased Deployment

Start with one line or shift, then ramp gradually. Don’t rip out your entire line overnight unless risk tolerance is high.

4. Comprehensive Training & SOPs

Train operators, maintenance crew, and supervisors. Prepare detailed SOPs, troubleshooting guides, and maintenance schedules.

5. Continuous Monitoring & OEE Tracking

Use built-in diagnostics and data logging to monitor uptime, throughput, and losses. Adjust, refine, and iterate.

6. Preventive Maintenance & Spare Parts Strategy

Keep critical spares, schedule regular servicing, and monitor wear items proactively.

7. Feedback & Iteration

Gather feedback from users on changeover pain points, mechanical issues, or inefficiencies. Iterate with upgrades or upgrades.

You now understand how a well-selected automatic case packer machine can transform your secondary packaging line — from boosting throughput and consistency to reducing labor cost and packaging waste.
