Checkweigher System Guide: Boost Quality Control & Efficiency

In today’s fast-paced manufacturing and packaging industries, precision is not just a preference—it’s a necessity. Errors in product weight can lead to wasted materials, regulatory issues, and unhappy customers. That’s where the checkweigher system steps in. This indispensable component of modern production lines ensures that every product leaving a facility meets specified weight criteria, reducing waste, optimizing productivity, and maintaining compliance with regulatory standards.

In this comprehensive guide, we’ll explore what a checkweigher system is, how it works, its various types and applications, key benefits, considerations for selecting the right system, and future trends. Whether you’re a manufacturing engineer, quality assurance specialist, or business owner, understanding the full potential of a checkweigher system can transform your operations.

What Is a Checkweigher System?

A checkweigher system is an automated machine used in manufacturing and packaging lines to verify the weight of individual products. It ensures that each product meets the predetermined weight requirement. If a product falls outside the acceptable weight range (too light or too heavy), the system automatically rejects it from the line.

Checkweighers are typically installed at the end of the production process, right before packaging or shipping. They serve as a final quality control checkpoint, guaranteeing product integrity and protecting brand reputation.

How Does a Checkweigher System Work?

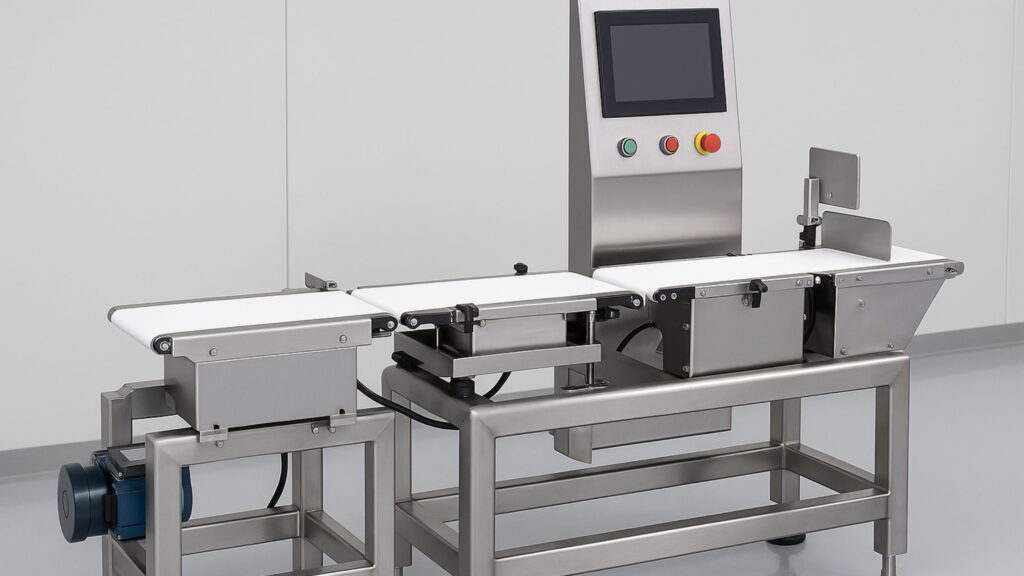

A typical checkweigher system consists of three major components:

Infeed Conveyor: This feeds the product to the weighing section in a consistent and timed manner.
Weighing Conveyor (Scale): The heart of the system, where dynamic weighing takes place. Load cells beneath the conveyor belt measure the product’s weight as it moves across.
Outfeed Conveyor with Reject Mechanism: Based on the weight measurement, the system either allows the product to proceed or diverts it to a rejection area using a pneumatic arm, air jet, or pusher.

The process involves:

Product Detection: Sensors identify the presence of a product and trigger the weighing process.
Weight Measurement: The load cell calculates the weight in real-time.
Data Comparison: The system compares the measured weight against preset limits.
Decision Making: Products within tolerance pass; others are rejected.

Advanced systems also offer features like feedback to filling machines, data logging, real-time monitoring, and integration with enterprise resource planning (ERP) systems.

Types of Checkweigher Systems

Different production environments demand different types of checkweigher systems. Here are the most common types:

1. In-Motion Checkweighers

These are used in high-speed production environments. Products are weighed while moving, with minimal interruption to the flow. These are ideal for food, pharmaceuticals, and consumer goods industries.

2. Static Checkweighers

These systems require the product to be stationary during weighing. They are slower but offer higher accuracy and are often used in laboratory or batch production environments.

3. Combination Systems

These systems integrate checkweighing with other inspection technologies like metal detection or X-ray inspection, providing a single-point solution for product integrity.

4. High-Precision Checkweighers

Used in pharmaceutical and chemical industries where exact measurements are critical.

Applications of Checkweigher Systems

Checkweigher systems are widely used across various industries:

Food and Beverage: To ensure correct portion sizes and prevent under/overfilling.
Pharmaceuticals: To verify that tablets, capsules, or packaged drugs meet strict regulatory standards.
Cosmetics and Personal Care: For accuracy in filling creams, lotions, or liquid products.
Industrial Products: In hardware or automotive parts manufacturing to verify kit completeness or part uniformity.
Agriculture and Produce: To ensure accurate packaging of fruits, vegetables, or grains.

Key Benefits of a Checkweigher System

1. Improved Accuracy and Quality Control

By catching weight deviations before products leave the facility, checkweigher systems prevent costly recalls and ensure customer satisfaction.

2. Regulatory Compliance

Many countries require accurate weight labeling under legal metrology acts. Checkweighers help businesses comply with these regulations.

3. Reduced Product Giveaway

Overfilling products leads to material loss. Checkweighers reduce this by maintaining precise control over fill levels.

4. Operational Efficiency

Automated checkweighers increase throughput and reduce manual inspection labor, improving line efficiency and reducing human error.

5. Data Collection and Analytics

Advanced systems track and log weight data, allowing manufacturers to identify trends, troubleshoot issues, and implement improvements.

6. Integration with Other Systems

Modern checkweigher systems can integrate with PLCs, MES, SCADA, and ERP systems, creating a seamless flow of data across the production chain.

Factors to Consider When Choosing a Checkweigher System

Selecting the right checkweigher system for your operation depends on several critical factors:

1. Product Type and Size

Heavier or irregularly shaped items may require specialized conveyors and load cells.

2. Speed Requirements

High-speed production lines need fast, dynamic systems that can weigh hundreds of products per minute without sacrificing accuracy.

3. Accuracy Needs

Pharmaceutical or high-value products may demand precision down to milligrams, while bulk products might allow for wider tolerance.

4. Environmental Conditions

Wet, dusty, or explosive environments require ruggedized or IP-rated systems with appropriate material enclosures.

5. Reject Mechanism

Choose a reject method (air jet, pusher, drop flap) that suits the nature of the product to avoid damage during ejection.

6. Ease of Use

User-friendly HMIs (human-machine interfaces), touchscreen controls, and multilingual support enhance usability and reduce training time.

7. Maintenance and Support

Opt for a system with easy access to parts and local service support for quick maintenance and minimal downtime.

Compliance and Legal Requirements

Different countries and regions have varying legal requirements for weight verification. Some key regulatory frameworks include:

NIST Handbook 133 (USA)
Weights and Measures Act (UK)
MID (Measuring Instruments Directive – EU)
OIML Recommendations (Global)

Using a checkweigher system that complies with these standards not only avoids fines but also builds trust with customers and regulators.

Checkweigher System vs. Weigh Price Labeler

While they may appear similar, there’s a distinction:

A checkweigher system only verifies the product weight and removes any out-of-spec items.
A weigh price labeler combines weighing and labeling functions, typically used in retail packaging to price items by weight.

Some advanced machines integrate both functionalities for retail-oriented production environments.

Challenges and Solutions in Using Checkweigher Systems

Despite their benefits, checkweighers can face certain challenges:

– Vibration and Line Speed Fluctuation

These can distort readings. Use vibration-isolated setups and consistent speed controls.

– Product Positioning

Misaligned products can skew results. Implement alignment guides or timing screws to ensure consistent placement.

– Product Variability

Products with shifting contents (like bags of powder) can show inconsistent weights. Calibration routines and averaging logic can help improve reliability.

– Data Overload

Collecting massive amounts of weight data can overwhelm teams. Use intelligent software with filtering and reporting capabilities to gain actionable insights.

Future Trends in Checkweigher Systems

As technology evolves, so does the checkweigher system. Here are some emerging trends:

1. Artificial Intelligence and Machine Learning

AI-driven algorithms can predict system anomalies, suggest adjustments, and adapt to variations in real-time.

2. IoT Integration

Checkweighers with IoT connectivity offer remote monitoring, cloud data storage, and predictive maintenance capabilities.

3. Touchless and Smart Interfaces

Modern interfaces using gesture control, voice command, or mobile apps enhance operator convenience.

4. Sustainability Focus

Systems that reduce waste and optimize packaging material usage support sustainability goals and reduce environmental impact.

Conclusion

The checkweigher system is a vital asset in today’s production environment. It helps ensure quality control, maintain compliance, reduce waste, and optimize operational efficiency. With advancements in automation, connectivity, and data analytics, checkweighers have evolved from simple weighing machines into smart quality assurance tools.

Investing in the right checkweigher system tailored to your specific industry needs can pay off in improved accuracy, customer satisfaction, and cost savings. As the demand for product precision continues to rise, embracing intelligent checkweighing solutions will keep manufacturers competitive in an increasingly quality-conscious world.
